Main Parameter For Ventilation
| Operating pressure | DC11.8–16V |
| Operating current | ≤0.8 A±300 mA (12 VDC) |
| Power | <11 WATTS. |

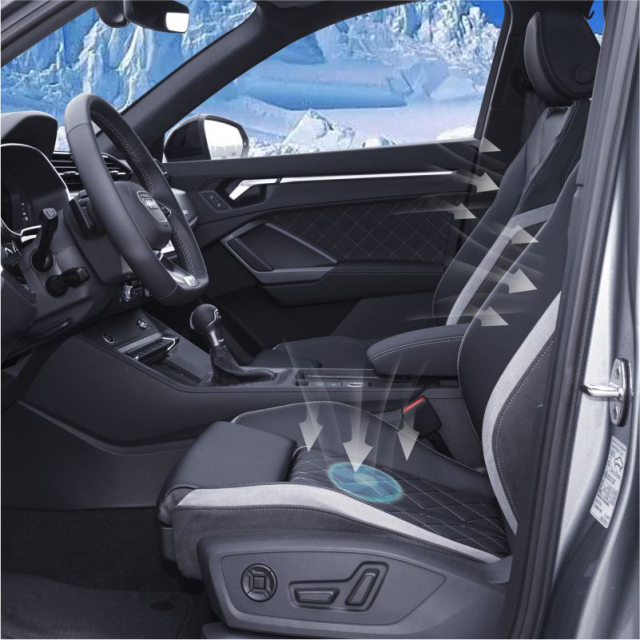

| Operating Mode | Ventilation of the cushion and backrest |
| Fan Speed | RPM = 5000/m(±5% |
| Operating Temperature Range | -10C~ +65OC |
| Storage Temperature Range | -40°C ~ +85°C. |
Main features
| Functions | Description |

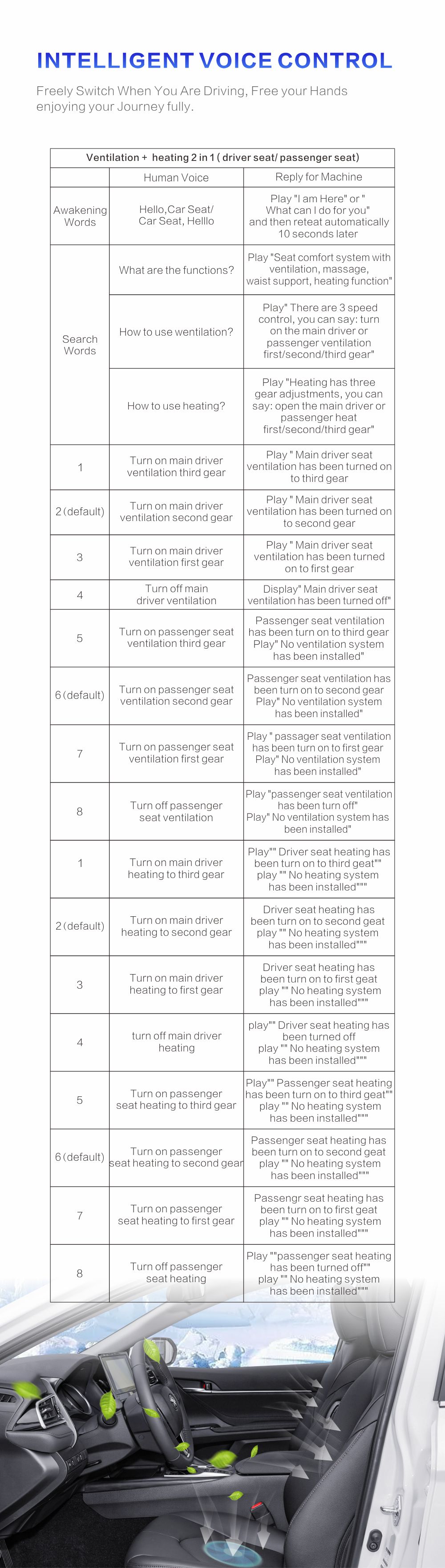

| Voice control | Human Voice Realize Ventilation Control |
| Mechanical Button | Pressure button for ventilation control |
| Ventilation | 3 Gear Options |
| Heating functions (optional) | 3 Heating Gear Systems Available |
Main Parameter For Heating
| Operating pressure | DC11.8–16V |
| Max. Operating current | ≤4.9A±300mA (DC 13.5V) |
| Maximum Power (Single) | <66 WATTS. |
| Operating Mode | Heated seat cushion and backrest |
| Overheating Protection Temperature | 45°C (+2°C) |
| No-load current | 0 mA |
| Operating Temperature Range | -20°C~ +75°C. |
| Storage Temperature Range | -40°C ~ +85°C. |
Main features
| Functions | Description |
| Voice control | Human Voice Realize Heating Control |
| Mechanical Button | Pressure button for heating control |
| Heating functions (optional) | 3 Heating Gear Systems Available |
